3.8V 42290A Battery with 0.5A Charge and 3.6A Max Discharge for Reliable Smart Lock Power

3.8V 42290A Battery with 0.5A Charge and 3.6A Max Discharge for Reliable Smart Lock Power

Produtos - Bateria de iões de lítio
  • Destacar

    3.8V 21700 Battery

    ,

    0.5A Charge Li-ion Polymer Battery

    ,

    3.6A Max Discharge Rechargeable Li-ion Cell

  • NOME
    Bateria de polímero de íon-lítio JH42290A para fechaduras inteligentes
  • ODM
    Design personalizado gratuito para pacotes
  • Capacidade
    3000mAh
  • Cátodo
    Óxido de lítio-níquel-manganês-cobalto (Li-NMC)
  • Tipo
    Célula de íon de lítio recarregável de bolsa
  • Tensão
    3.8V
  • Carga
    0,5A, 1A máx.
  • Descarga
    0,6A padrão, 3,6A máx.
  • Temperatura operacional
    Carga: 10°C a 45°C / Descarga: -10°C a 60°C
  • Ciclo Life
    Mais de 500 ciclos com capacidade ≥80%
  • Peso
    ≤65g
  • Resistência interna
    ≤90mΩ (CA 1000Hz)
  • Dimensões
    D42*H29mm
  • Lugar de origem
    CHINA
  • Marca
    OiD
  • Certificação
    Compliant with UL1642, IEC/EN6196, and GB/T 18287-2013 standards
  • Número do modelo
    JH42290A
  • Quantidade de ordem mínima
    Negociável
  • Preço
    negotiable
  • Detalhes da embalagem
    Carton
  • Tempo de entrega
    3 ~ 30 dias
  • Termos de pagamento
    L/C, T/T, Western Union
  • Habilidade da fonte
    100000

3.8V 42290A Battery with 0.5A Charge and 3.6A Max Discharge for Reliable Smart Lock Power

  • 3.8V 42290A Battery with 0.5A Charge and 3.6A Max Discharge for Reliable Smart Lock Power
  • 3.8V 42290A Battery with 0.5A Charge and 3.6A Max Discharge for Reliable Smart Lock Power
  • 3.8V 42290A Battery with 0.5A Charge and 3.6A Max Discharge for Reliable Smart Lock Power
  • 3.8V 42290A Battery with 0.5A Charge and 3.6A Max Discharge for Reliable Smart Lock Power
  • 3.8V 42290A Battery with 0.5A Charge and 3.6A Max Discharge for Reliable Smart Lock Power
  • 3.8V 42290A Battery with 0.5A Charge and 3.6A Max Discharge for Reliable Smart Lock Power
Obtenha o preço contacto

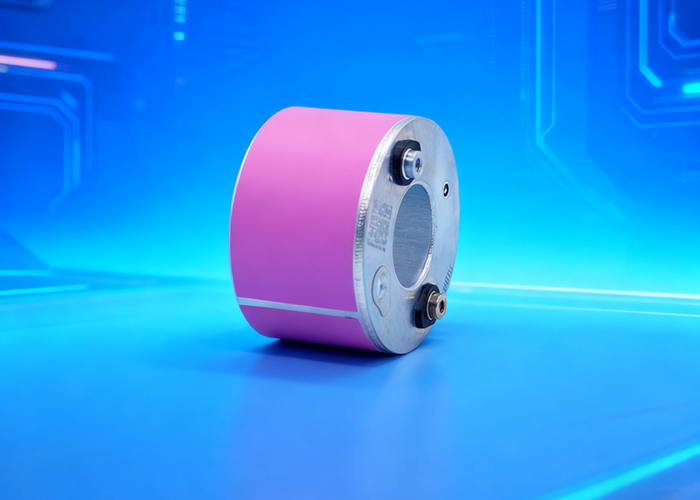

Product Name: JH42290A Li-ion Polymer Battery for Smart Locks

Key Features

  • High Capacity: 3000mAh (minimum) / 3050mAh (typical)
  • Long Cycle Life: 500+ cycles with ≥80% capacity retention
  • Wide Temperature Range: Optimized for smart lock usage in varied climates
  • Enhanced Safety: Compliant with UL1642, IEC/EN6196, and GB/T 18287-2013 standards

Electrical Parameters

Parameter Specification
Nominal Voltage 3.8V
Charging Voltage 4.35V
Discharge Cut-off Voltage 3.0V
Standard Charging Current 0.5A
Max Charging Current 1.0A
Standard Discharge Current 0.6A
Max Continuous Discharge 3.6A (9A pulse ≤3s)
Internal Impedance ≤90mΩ
Operating Temperature Charge: 10°C to 45°C / Discharge: -10°C to 60°C
Storage Temperature -10°C to 25°C (12 months, ≥85% capacity)

3.8V 42290A Battery with 0.5A Charge and 3.6A Max Discharge for Reliable Smart Lock Power 0

Optimized for Smart Lock Applications

The JH42290A Li-ion polymer battery delivers consistent power and extended service life, making it the ideal energy solution for modern smart locks. Its high capacity and stable voltage output ensure reliable performance in critical access control systems.

Safety & Reliability

  • Built-in protection against overcharge, over-discharge, and short circuits.
  • Robust construction with aluminum casing and insulated film for added durability.
  • Meets international safety standards for peace of mind.

Environmental Adaptability

Designed to operate efficiently in diverse environments, from freezing winters to hot summers, this battery ensures your smart lock remains functional year-round.

Applications

  • Smart door locks
  • Access control systems
  • IoT security devices

Keywords: smart lock battery, Li-ion polymer battery, 3000mAh battery, JH42290A, high-capacity smart lock power, reliable battery for access control, IoT energy solution.

Meta Description: Upgrade your smart lock’s performance with the JH42290A 3000mAh Li-ion battery. Featuring long cycle life, wide temperature tolerance, and full safety compliance—ideal for access control and IoT security devices.
